Re: What's On Your Bench
Post 18 Apr 2021, 13:23 • #2151
Glass Fanatic
Joined: 12/27/14
Posts: 1491
Location: ON, Canada
Carlz - yes it’s my first try at turning wooden handle bits. Came out pretty well, I just hope my finish holds up to use. Here’s a photo of the whole thing - I can barely get it in the camera frame...


The blank is a sort of rare CND 7/8/9. Again, not for me - I don’t have any regular need a rod that long!


Top

Quote
Re: What's On Your Bench
Post 19 Apr 2021, 08:48 • #2152
Glass Fanatic
Joined: 02/26/14
Posts: 3211
Location: US-MN
Beautiful!


Top

Quote
Re: What's On Your Bench
Post 02 May 2021, 16:07 • #2153
Master Guide
Joined: 12/31/15
Posts: 899
Location: Three Forks of the Flathead
That's a really excellent build, brockton. Along with the grip, I really like the thread choice. Is that Fuji's blue dun?

Here's a Livingston honey E-glass on the rod turner, prepping for the signature. It has a Struble D20 reel seat with a tiger maple insert. I really love the color of these blanks.







Top

Quote
Re: What's On Your Bench
Post 03 May 2021, 11:13 • #2154
Glass Fanatic
Joined: 01/02/12
Posts: 1668
Location: Gig Harbor, WA
Glacier - is that the 8’ 3wt blank you are building? I am very interested in that blank and am curious as to your impressions of it. Dusty told me it is a parabolic action and that’s about it. Roy


Top

Quote
Re: What's On Your Bench
Post 03 May 2021, 20:14 • #2155
Master Guide
Joined: 12/31/15
Posts: 899
Location: Three Forks of the Flathead
Roy, it’s a 5 weight. Sorry that I can’t help you there. I’ll get it out and fish it once it’s built, but I’m not sure when I’ll actually get to all it. I have a lot going on at work and home for the next couple of weeks. For now, it’s just about doing what I can when I can.


Top

Quote
Re: What's On Your Bench
Post 04 May 2021, 05:49 • #2156
Glass Fanatic
Joined: 02/26/14
Posts: 3211
Location: US-MN
Looking great GR! Looking forward to the finished product and a review of that rod!


Top

Quote
Re: What's On Your Bench
Post 05 May 2021, 06:28 • #2157
Guide
Joined: 11/23/17
Posts: 227
Location: Lehigh Valley, PA
Rod building is usually not a high priority during early season mayfly fishing here in PA. However, recent receipt of an 804-3 McFarland “Classic” blank caused me to fit the build in between multi-day fishing excursions. I had chosen this blank because of how much I’ve been enjoying the “Classic” 835-3 over the last couple years.

During a few disjointed sessions I selected cork rings for the grip, matched a reel seat insert with a Lemke LC-7 dark nickel skeleton, and ordered in some guides. A stent was installed to get the butt diameter into the range of my reel seat insert ID. Following grip turning I mocked up the bottom end, taped guides in place, and did some lawn casting. Not many progress photos were taken as I was hustling this one and didn’t spend much time with photo documentation.

As a little aside, reel seat (up or down locking) hardware has changed quite a bit since I began building. Hardware is mostly aluminum now versus weighty nickel silver. So unlike an original U20 skeleton weighing about an ounce, modern equivalents weigh about 0.4 ounces. This difference requires attention when trying to achieve a nice balance. For this rod I felt added butt weight would help, so I incorporated a 6 gram (.212 oz) lead golf club shaft weight into the butt of the stent.

Over the last few weeks I performed the assembly, doing the epoxy applications last weekend before departing for a couple day fishing trip. I was anxious to return home to cast the finished rod, which I did today. While out on the lawn I shot a few finished rod pictures - I’ll post some of them over in the Rod Photos forum.

- Quarter inch cork rings
- Lemke LC-7 dark nickel skeleton
- Snake Brand snakes and tip top
- Mildrum stripping guide darkened with Birchwood Casey aluminum black
- Gudebrod gold/black jasper thread and light yellow thread, tipped with black silk. First epoxy mix had denatured alcohol added to aid transparency

Jeff

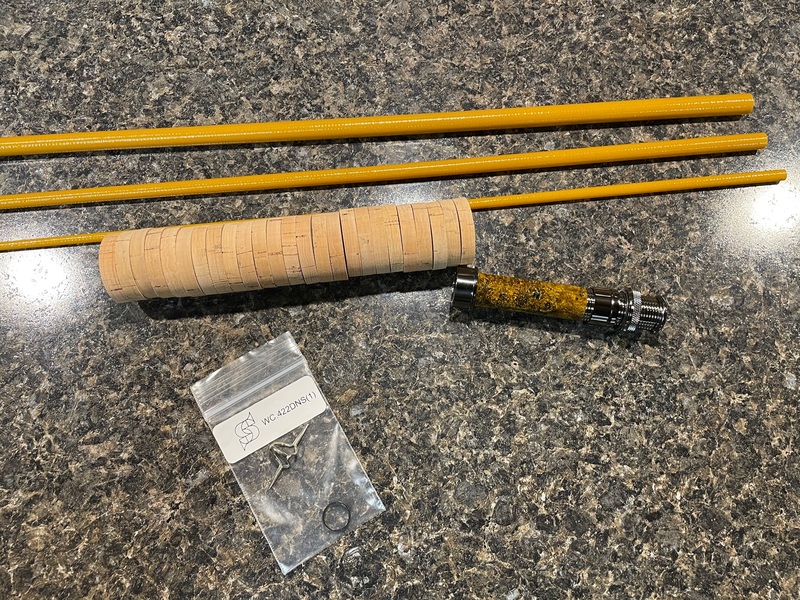

Bottom end components

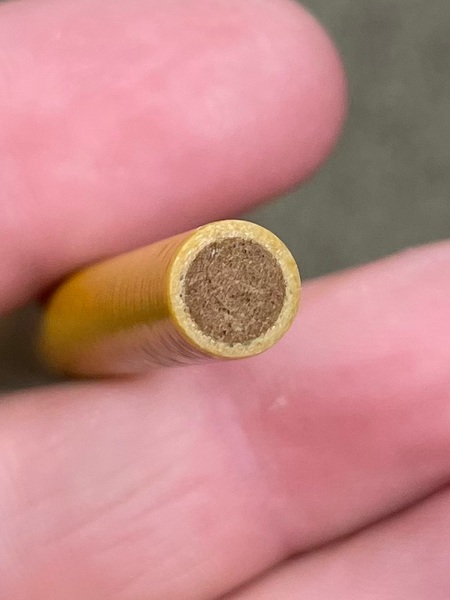

Stent notes for a fellow builder


Stent in place


Stent shortened and reel seat fit into place over stent


Grip and reel seat fit


First epoxy application turning


Foam fly tying cylinder used to close off male ferrule


Top

Quote
Re: What's On Your Bench
Post 06 May 2021, 09:28 • #2158
Guide
Joined: 09/26/12
Posts: 157
Location: AB, Canada
Jeff, nice work and great choice in components. Above all else, your cork grip work is absolutely stunning! I assume you turned the grip on the blank?

Ron


Top

Quote
Re: What's On Your Bench
Post 06 May 2021, 09:37 • #2159
Guide
Joined: 11/23/17
Posts: 227
Location: Lehigh Valley, PA
Thank you Ron,
No, I've never attempted turning on the blank. I've always been more comfortable turning the grip on a mandrel, then getting all fitting taken care of before bonding the grip and reel seat in place.

Jeff


Top

Quote
Re: What's On Your Bench
Post 06 May 2021, 10:10 • #2160
Glass Fanatic
Joined: 02/26/14
Posts: 3211
Location: US-MN
Thanks for taking us through all the steps Jeff. Beautiful build!


Top

Quote
Re: What's On Your Bench
Post 06 May 2021, 13:37 • #2161
Guide
Joined: 08/23/19
Posts: 214
Location: North Central Oregon
Beautiful work guys!

Bruce


Top

Quote
Re: What's On Your Bench
Post 06 May 2021, 21:02 • #2162
Glass Fanatic
Joined: 12/27/14
Posts: 1491
Location: ON, Canada
GlacierRambler wrote:
That's a really excellent build, brockton. Along with the grip, I really like the thread choice. Is that Fuji's blue dun?

Sorry GR, I just noticed your question!
It’s Fuji NCP and I think the colour is just “green”. It’s sort of a weird colour but happens to work with this blank.

That Livingston looks great.


Top

Quote
Re: What's On Your Bench
Post 06 Jun 2021, 21:24 • #2163
Glass Fanatic
Joined: 12/27/14
Posts: 1491
Location: ON, Canada
Getting on another project...
Stripping down two 10’6” 3wt Echo glass switches for a reel seat/handle upgrade. One for me, one for a client.



These guys are not easy to strip. Echo puts together a tough rod.


Top

Quote
Re: What's On Your Bench
Post 07 Jun 2021, 10:26 • #2164
Guide
Joined: 11/23/17
Posts: 227
Location: Lehigh Valley, PA
Nice projects, keep the photos coming.

Jeff


Top

Quote
Re: What's On Your Bench
Post 10 Jul 2021, 07:02 • #2165
Master Guide
Joined: 02/19/12
Posts: 931
Location: Beantown
Finally finished my NFC 8 weight and got her out on the water. Certainly not the biggest striper of the year, but put a nice bend in her. Really enjoyed fishing this rod!





Top

Quote
Re: What's On Your Bench
Post 23 Jul 2021, 14:12 • #2166
Glass Fanatic
Joined: 12/27/14
Posts: 1491
Location: ON, Canada
Progress! I think I might even get these done over the weekend. Miracles do happen.



Top

Quote
Re: What's On Your Bench
Post 15 Sep 2021, 11:54 • #2167
Glass Fanatic
Joined: 12/27/14
Posts: 1491
Location: ON, Canada
Last project, next project, and some new raw materials.
